Android setContentView Explained – How UI Actually Loads in Android (Kotlin & Java)
Learn how setContentView works in Android. Understand layout inflation, view hierarchy, and how XML UI loads inside Activity using Kotlin and Java.
Introduction
When you create your first Android app, one line appears in almost every Activity:
Most beginners copy this line without understanding what it actually does.
But this single line is responsible for loading your entire user interface.
Without setContentView, your Activity would run but no UI would appear on the screen.
To become a professional Android developer, you must understand how UI actually loads.
What is setContentView?
setContentView() tells Android which layout file should be displayed inside the Activity.
Example:
This means:
“Load the layout file named activity_main.xml and display it on the screen.”
Where is the Layout File Located?
Inside the res/layout folder.
Example structure:
└── layout/
└── activity_main.xml
When you write:
Android refers to:
Basic Example
Activity code (Kotlin):
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_main)
}
}
Layout file:
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello Android"/>
When Activity starts, Android loads this layout and displays it.
What Happens Internally?
When setContentView() runs, Android performs several steps.
Internal flow:
↓
setContentView() called
↓
XML layout file read
↓
Layout inflated
↓
View hierarchy created
↓
Views rendered on screen
This process is called Layout Inflation.
What is Layout Inflation?
Layout inflation means converting XML layout into actual UI objects.
Example XML:
android:text="Login"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
After inflation, Android creates a real object:
Then this button becomes part of the screen.
View Hierarchy Explained
Every Android UI follows a tree structure.
Example layout:
├── TextView
├── EditText
└── Button
Hierarchy becomes:
↓
Child Views
Android draws UI using this hierarchy.
Example Layout
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:text="Welcome"/>
<Button
android:text="Login"/>
</LinearLayout>
Here:
TextView → Child
Button → Child
This structure loads through setContentView().
Java Example
Same Activity in Java:
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
}
}
Java and Kotlin behavior is identical.

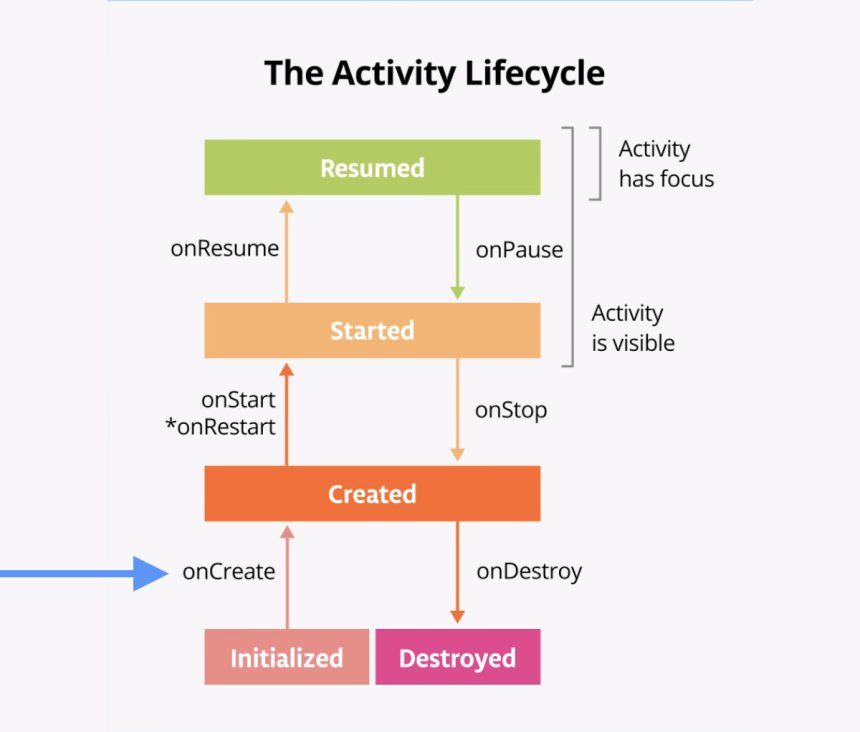

Why setContentView Must Be Inside onCreate()
Because Activity UI must load when Activity is created.
Correct place:
Wrong place:
onStart()
UI should only load once.
Multiple Layout Example
You can load different layouts.
Example:
or
Activity can display any layout file.
Dynamic UI Loading Example
Example:
setContentView(R.layout.dashboard_layout)
}else{
setContentView(R.layout.login_layout)
}
This changes screen dynamically.
setContentView vs LayoutInflater
setContentView() is used mainly in Activities.
But Fragments use LayoutInflater.
Example Fragment:
inflater: LayoutInflater,
container: ViewGroup?,
savedInstanceState: Bundle?
): View? {
return inflater.inflate(R.layout.fragment_home, container, false)
}
Both perform layout inflation.
Real Production Example – POS Billing Screen
Imagine POS billing screen.
Activity loads layout:
Inside:
TextView → Total amount
Button → Checkout
All these components appear because of setContentView.
Most Common Beginner Mistakes
❌ Forgetting to call setContentView
❌ Calling it multiple times unnecessarily
❌ Using wrong layout file
❌ Accessing views before UI loads
Correct order:
↓
setContentView()
↓
findViewById()
Interview-Level Answer
If interviewer asks:
“What does setContentView do in Android?”
Professional answer:
setContentView() sets the layout resource to be used as the Activity’s UI. It inflates the XML layout file and creates the View hierarchy displayed on the screen.
Simple Summary
setContentView() = Load UI.
Process:
↓
Layout inflation
↓
View hierarchy
↓
UI appears
This is the basic UI loading mechanism of Android.
Conclusion
Even though setContentView() looks like a small line of code, it is responsible for displaying the entire user interface of your Activity.
Understanding how it works helps you understand:
-
Layout inflation
-
View hierarchy
-
UI rendering
These concepts are fundamental for Android UI development.
